SRMI34 Series

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

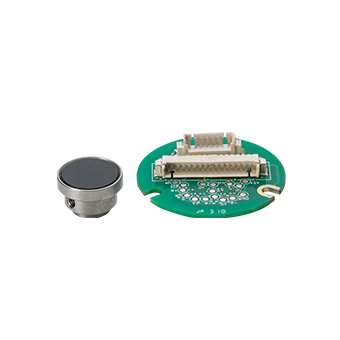

The SRMI34 magnetic encoder is an incremental rotary encoder, offering reliable and stable operation, suitable for various applications that require dependable performance.

The SRMI34 magnetic incremental encoder is easy to install, provides stable pulse output, and can be applied in the servo industry.

Product characteristics

Modular structure, 34mm in diameter, easy to install;

One-click debugging, convenient and fast;

Strict EMC testing, meeting the requirements for harsh electromagnetic environments.

Product advantages

Ultrathin design, high cost-performance ratio;

Easy to install, simple to debug.

Technical specifications

System

Resolution	2500 C/T、1024C/T
Communication Specification	Pulse mode
Operating Speed	≤7200rpm
Response Frequency	＜250KHz
Output Format	Line drive 26C31

Electrical

Supply Voltage	5 V ± 5%
Main power supply current consumption (typical)	50mA
Differential Output Level	High level≥4.7V; Low level≤5.25V
Insulation Resistance	10MΩ
EMC Features	IEC61800-3

Environment

Operating Temperature	-40℃~+105℃
Humidity	≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating	—（Motor Rear Case Protection）
Shock	Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
