EDROI89 Series

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

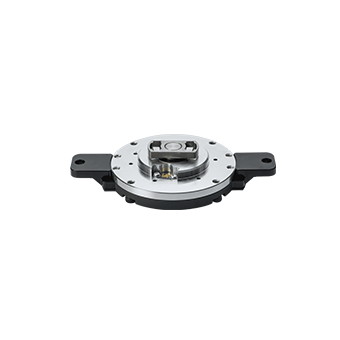

The disc-type sine-cosine encoder is a specialized encoder designed for the inner rotor structure of disc motors used in elevator traction machines. It adopts a cross-coupling principle in its structure, significantly improving the encoder's vibration characteristics.

Product characteristics

Ultra-thin structure, without spring contact design, and no components subject to long-term fatigue.

ABCDZ signal output, compatible with standard sine-cosine encoders, offering broader system applicability and usability.

Product advantages

Smoother operation, less prone to damage.

The main body is fixed with an annular bracket, addressing startup fluctuations, providing a more comfortable experience.

Easy to install, disassemble, and maintain, making it more user-friendly.

Technical specifications

System

Resolution	2048P/R
Incremental signals optional	Sin-Cos 1 Vpp
Communication Frequency	≤100KHz
Maximum transmission distance	30m
Wiring method	Flying leads

Electrical

Supply Voltage	5 V ± 5%
Main power supply current consumption (typical)	100mA
Insulation Impedance	>500MΩ

Environment

EMC Features	IEC61000-4
Operating Temperature	-40℃~120℃
Humidity	≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating	IP 40
Shock	Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
